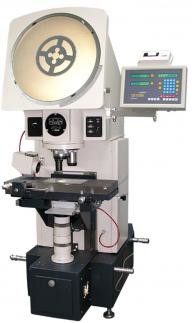

Motorized Z Axis Benchtop Optical Comparator Profile Projector Parallel Contour Light

Motorized Z Axis Benchtop Optical Comparator Profile Projector Parallel Contour Light

Motorized Z Axis Benchtop Optical Comparator Profile Projector Parallel Contour Light

Ürün ayrıntıları:

Place of Origin: China
Marka adı: UNIMETRO
Model Number: UNPJ3-C/D

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Packaging Details: Wood case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 5 per month
Şimdi başvurun
Detaylı ürün tanımı
Z axis movement: Work stage movement, motorized Work stage dimension(mm): 640 x 228
Glass dimension(mm): 250 x 156 Illumination range(mm): 250 x 150
Measuring range(mm): 200 x 100 Focusing range(mm): 0-80



Motorized Z Axis Optical Profile Projector Parallel Contour Light Heavy Loading



Features



Large work stage, heavy loading, large measuring range.

Working stage movement, motorized control, easy operation.

The optical system is telecentric, using parallel illumination, low measuring error.

High accuracy lens turret, easy change of magnification, precise locating.

Internal adjusting of the contour light, smart structure.

Including standard fixture accessories as V type supporter, rods supporters.

The UNPJ3-D series is including powerful functional digital readout system and mini printer.

The UNPJ3-C series is including PC and measuring software.



Parameters



Projector screen



Screen diameter: 500mm

Rotating range: 0 - 360 degrees

Rotating angle resolution: 1’

Rotating measuring accuracy: 6’



Working stage



Work stage dimension(mm) 640 x 228
Glass dimension(mm) 250 x 156
Illumination range(mm) 250 x 150
Measuring range(mm) 200 x 100
Focusing range(mm) 0-80
Resolution(mm) 0.001
Measuring accuracy 4+L/25um (L is the measuring length, unit:mm)
Max. loading(kg) 15



Lens



Magnification 10X 20X 50X 100X
View range φ50mm φ25mm φ10mm φ5mm
Working distance 135mm 87mm 52mm 24mm



Magnification error: 0.08%



Rods holder

Max. Diameter: 115mm

Max length: 300mm



Illumination



Contour light and Surface light: 12V100W halogen lamp



Working environment



20℃±5℃, humidity 40%-70%RH

Working dimension (mm) : 1340 x 800 x 1960

Weight: 1000kg



Application



Typical application: Automobile, shafts, motor bearing, valves, braking pad, tubes, diverter, gas injector; electronics, connectors, PCB, mobile phone covers, press buttons, for the dimension and holes measuring; rubber industry, rubber ring, rubber rod; mechanical,for threads, screws, motor blade, gears, tools; clocks and watches industry, bearings, gears, indicators; aviation, impeller, electronic components, bearings.
