Horizontal Optical Digital Profile Projector Machine For Shaft Parts Measuring

Horizontal Optical Digital Profile Projector Machine For Shaft Parts Measuring

Horizontal Optical Digital Profile Projector Machine For Shaft Parts Measuring

Ürün ayrıntıları:

Place of Origin: China
Marka adı: UNIMETRO
Model Number: UNPJ26-400H

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Packaging Details: Wood case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 5 per month
Şimdi başvurun
Detaylı ürün tanımı
Surface light transmitting: Optic fiber Optic structure: Horizontal
Work stage dimension(mm): 450 x 150 Measuring range(mm): 250 x 150
Measuring accuracy: 3+L/75um (L is the measuring length, unit:mm) Max. loading(kg): 5



Horizontal Optical Profile Projector 400 mm Screen For Shaft Parts Measuring



Introduction

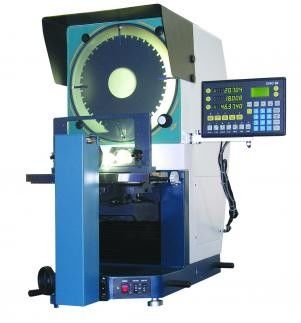

The UNPJ26-400H series horizontal optical profile projector is design for general application, it is with smart design and easy operation, the Z axis uses high performance V type guide way, transmission is light and comfortable.



The contour illumination is switch from high brightness to low brightness, suitable for different parts’ measuring. High quality illumination offers clear image and precise magnification.



The surface light is using optic fiber for transmitting, small size, high brightness and easy operation. The UNPJ26-400H series horizontal optical profile projector is embedded with large projecting screen, horizontal optic design, it is the perfect measuring instrument for the shafts parts.



Parameters



Projector screen

Screen diameter: 400mm

Rotating range: 0 - 360 degrees

Rotating angle resolution: 1’

Rotating measuring accuracy: 4’



Working stage



Work stage dimension(mm) 450 x 150
Measuring range(mm) 250 x 150
Focusing range(mm) 0-80
Resolution(mm) 0.001
Measuring accuracy 3+L/75um (L is the measuring length, unit:mm)
Max. loading(kg) 5



Lens



Magnification 10X 20X 50X 100X
View range φ40mm φ20mm φ8mm φ4mm
Working distance 88mm 81mm 54mm 45mm



Magnification error: 0.08%



Illumination



Contour light and Surface light: 24V150W halogen lamp

Surface light: 24V150W halogen lamp, reflecting device included



Working environment



20℃±5℃, humidity 40%-70%RH

Working dimension (mm) : 687 x 443 x 942

Weight: 150kg
