Precise 0.0001 MM Optical Linear Scale TTL Signal 422 Signal VMM Lathe EDM

Precise 0.0001 MM Optical Linear Scale TTL Signal 422 Signal VMM Lathe EDM

Precise 0.0001 MM Optical Linear Scale TTL Signal 422 Signal VMM Lathe EDM

Ürün ayrıntıları:

Place of Origin: China
Marka adı: UNIMETRO
Model Number: UJC

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 200 per month
Şimdi başvurun
Detaylı ürün tanımı
Grating distance: 20um(0.02mm), 10um(0.01mm) Grating measuring system: Projection-type infrared measuring system, infrared wave length: 800nm
Max working speed: 20m/min(1um), 60m/min(5um) Output signal: TTL, RS422, ~1Vpp
Working voltage: 5V±5%DC, 12±5%DV, 24V±5%DC Working environment: Temperature: -10-45°C, humidity≦90%

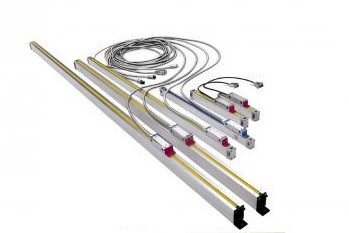

0.0001 MM Resolution Optical Linear Scale TTL Signal 422 Signal VMM Lathe EDM



Introduction



The linear transducer system is mainly used in linear movement guiding structure, it is for the accurate position reading of the linear movement. It is widely used in the machine tools and measuring instruments. Unimetro provides multiple models of the linear scales products, used in varies of machine tools or measuring machines digital retrofit. Also OEM or ODM is available.



The UJ series linear scales are with 2 models, open scales and sealed scales. The open scale is high accuracy type, mainly used on measuring machine, the highest resolution up to 0.1um. The sealed scales are mainly used in machine tools and measuring devices, TTL signal or sin/cos signal, including thin scales, standard, and large scales. The large scales UJCXG length is up to 3100mm. Extra large scales are up to 3100mm-15000mm. Also we offers varies of accessories for users based on requirement for installation.



Models



Used on measuring machines: UJCXF, UJCXE, UJCXFS, UJCXH series

Used on machine tools: UJCXF, UJCXFS, UJCXE, UJCXK, UJCXG, UJCXGL series

Used on plastic injection machine: UJCXEP

EDM, small holes machine, wire cut: special sensor for EDM



Parameters



Model UJCXF1/UJCXFS1 UJCXF5/UJCXFS5 UJCXH UJCXE1 UJCXE5 UJCXG1 UJCXG5 UJCXGL5
Grating distance 20um(0.02mm), 10um(0.01mm)
Grating measuring system Projection-type infrared measuring system, infrared wave length: 800nm
Reader head movement system Vertical 5 bearings movement 45°5 bearings movement
Resolution 1um 5um 1um 5um 1um 5um 1um 5um 5um
Travel 50-600mm, 50-400mm(FS type) 50-500mm 50-1000mm 50-3000mm 3000-6000mm
Max working speed 20m/min(1um), 60m/min(5um)
Output signal TTL, RS422, ~1Vpp
Working voltage 5V±5%DC, 12±5%DV, 24V±5%DC
Working environment Temperature: -10-45°C, humidity≦90%





Application



The UJC series applied on a vision measurement machine
