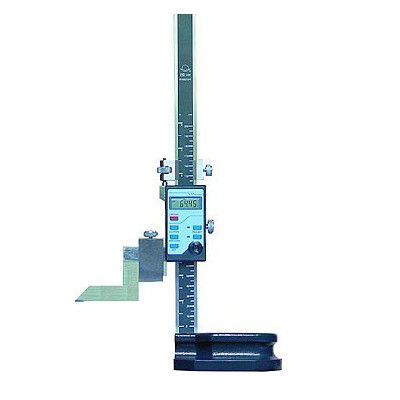

Stainless Steel Optical Absolute Linear Scale Height Tester LCD Display INC Measuring

Stainless Steel Optical Absolute Linear Scale Height Tester LCD Display INC Measuring

Stainless Steel Optical Absolute Linear Scale Height Tester LCD Display INC Measuring

Ürün ayrıntıları:

Place of Origin: China
Marka adı: UNIMETRO
Model Number: UHME

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Packaging Details: Paper box
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 30 per month
Şimdi başvurun
Detaylı ürün tanımı
Material: Stainless steel Fine adjusting device: Included
Resolution: 0.01mm, 0.001” Data output: RS232
Display: 6 character LCD display, with negative label ( - ) INC and PRESET function: Included



Stainless Steel Optical Linear Scale Height Tester LCD Display INC Measuring



Features



Stainless steel material.



Stable scale base ensures reliable measuring.



Fine adjusting device included, ensures high accuracy measuring.



Resolution: 0.01mm, 0.001”



RS232 data output.



Display: 6 character LCD display, with negative label ( - ).



Rigid alloy clamp with curved lines.



The integer base is with hardening process.



The main advanced feature of the series is INC and PRESET function, the INC mode can achieve the calculating between 2 readings, the PRESET function allows the users to set the preset value before measuring.



Gauges bracket is included, available for multiple types of gauges, to satisfy other measuring or detecting job.



Models



NO.             Measuring              Range Resolution            Accuracy



3131-201    0-200mm/0-8"        0.01mm/0.0005"             +0.02mm/0.001"
3131-301    0-300mm/0-12"      0.01mm/0.0005"             +0.03mm/0.0015"
3131-451    0-450mm/0-12"      0.01mm/0.0005"             +0.04mm/0.0015"
3131-501    0-500mm/0-18"      0.01mm/0.0005"             +0.05mm/0.002"
3131-601    0-600mm/0-24"      0.01mm/0.0005"             +0.05mm/0.0025"
3131-1001  0-1000mm/0-40"    0.01mm/0.0005"             +0.07mm/0.004"
