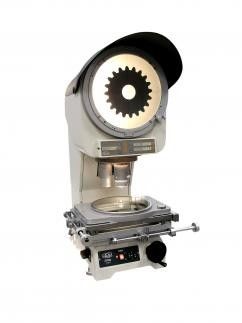

Stable Structure Optical Profile Projector 0.001mm Resolution With Lens Turret 3 Lens

Stable Structure Optical Profile Projector 0.001mm Resolution With Lens Turret 3 Lens

Stable Structure Optical Profile Projector 0.001mm Resolution With Lens Turret 3 Lens

Ürün ayrıntıları:

Place of Origin: China
Marka adı: UNIMETRO
Model Number: UNPJ14A/14B

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Packaging Details: Wood case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10 per month
Şimdi başvurun
Detaylı ürün tanımı
Lens turret: Included Lens option: 10X, 20X, 50X, 100X
RS232 connector: Included Screen diameter: 300mm
Magnification error: 0.08% Working environment: 20℃±5℃, humidity 40%-70%RH



0.001 mm Resolution Optical Profile Projector Lens Turret Installing 3 Lens



Features



Smart design and stable structure, easy operation.



The light source is using high brightness and long life cycle halogen lamp, offers excellent illumination and clear image.



The contour light is switchable for 2 levels, high and low brightness, suitable for different measurement requirement.



3 models of stage size are for option, satisfying the measuring requirement of parts of different size.



With the projector box moving structure, enlarge the Z axis traveling range.



The focus lens is adjustable based on different magnification.



Lens turret included, embedded with 3 lens, users can change the magnification easily.



RS232 connector included, capable to connect to the 2D measuring software.



Specification



Screen

Screen diameter: 300mm

Rotating range: 0 - 360 degrees

Rotating angle resolution: 1’

Rotating measuring accuracy: 6’



Working stage



Item Small Medium Large
Stage size(mm) 350 x 240 400 x 280 450 x 286
Measuring range(mm) 150 x 100 200 x 150 250 x 150
Focusing range(mm) 0 - 100 0 - 100 0 - 100
Resolution(mm) 0.001 0.001 0.001
Accuracy 3+L/75um (L is the measuring length, unit:mm)
Max. loading(kg) 10 15 20



Lens



Magnification 10X 20X 50X 100X
View range φ30mm φ15mm φ6mm φ3mm
Working distance 74mm 69mm 63mm 41mm



Magnification error: 0.08%



Illumination

Contour light: 24V150W halogen lamp

Surface light: 24V150W halogen lamp



Working environment

20℃±5℃, humidity 40%-70%RH

Dimension (mm) : 410 x 650 x 1070

Weight: 90kg



Application



Typical application: Automobile, shafts, motor bearing, valves, braking pad, tubes, diverter, gas injector; electronics, connectors, PCB, mobile phone covers, press buttons, for the dimension and holes measuring; rubber industry, rubber ring, rubber rod; mechanical,for threads, screws, motor blade, gears, tools; clocks and watches industry, bearings, gears, indicators; aviation, impeller, electronic components, bearings.
