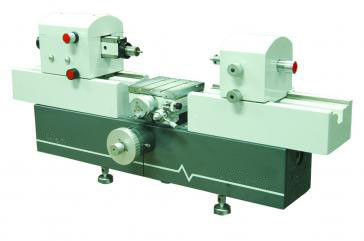

Universal Length Measuring Machine 0.1 um Resolution Profile Projector Measurement

Universal Length Measuring Machine 0.1 um Resolution Profile Projector Measurement

Universal Length Measuring Machine 0.1 um Resolution Profile Projector Measurement

Ürün ayrıntıları:

Place of Origin: China
Marka adı: UNIMETRO
Model Number: UNIDL-36H

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Packaging Details: Wood case
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3 per month
Şimdi başvurun
Detaylı ürün tanımı
Resolution: 0.1 um Work stage loading: 10kg
External dimension absolute measuring: 0 - 100mm External dimension increment measuring: 0-750mm



Optical Profile Projector Universal Length Measuring Machine 0.1 um Resolution



Features



The machine base is using high performance cast iron, with aging process, high stability.



The measuring spindle is using optimize square design, ensures the movement stability during the measuring process.



Multiple powerful accessories for option, satisfying different measuring requirement.



The grating light source is using infrared generator, which is with advantage of low voltage, low current, small size, long life cycle.



The UNIDL-36H length measuring machine is using high accuracy measuring system, according with the Abbe principle, offering high measuring precision.



The series is using high performance optical grating system and subdivision system, with high accuracy and stability.



Including powerful software, compensating the reading error and errors caused by temperature difference, and automatic identifying the turning points function included.



Parameters



Measuring range (mm):

External dimension: absolute measuring 0 - 100, increment measuring 0-750

Internal dimension: using the small measuring hook, (max. Depth 12, max thickness 50): 10-480

Using large hook(max depth 50, max thickness 85): 30-450

Using the electric device measuring: using the electric measuring hook is 1-60, when using the universal hook is 14-112



Resolution: 0.1um



Accuracy: (temperature 20°C±0.2°C)



Model External dimension measuring Internal dimension measuring
JD36 0.3um 0.7um
JD36-H 0.2um 0.6um



Internal threads center diameter measuring:

Using small hook (small diameter is 13-30)

Using large hook, small diameter is 31-2 x (70 - the wall thickness), pitch: 0.5 - 6

External center diameter measuring(mm): max. 200, pitch 1 - 6

Measuring force(N):0, 1.5, 2.5



Value display error:



Model External dimension measuring Internal dimension measuring
JD36 2σ≤0.2um 2σ≤0.4um
JD36-H 2σ≤0.1um 2σ≤0.3um



Universal working stage: installing dimension(mm), about 160 x 160

Height adjusting range(0-100)mm, transverse travelling: 25 mm

Around Y axis inclined: ±3 degrees, work stage rotation: ±4 degrees

Work stage loading: 10kg

Measuring cover internal diameter matching dimension: φ6H7

External diameter of the measuring cover rod and the measuring cover internal matching: φ6g6

Working environment: temperature 20℃±0.5℃, humidity ≤60%RH

Weight: 170kg

Dimension(mm): 1060 X 390 X 450
