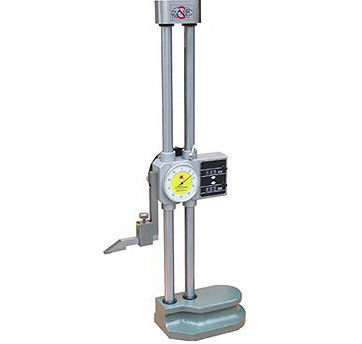

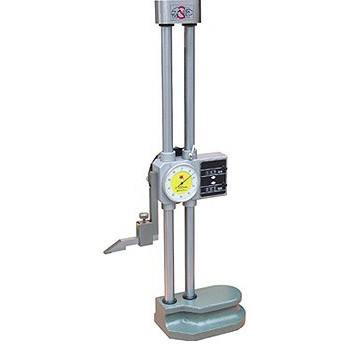

Gauge Display Optical Linear Scale Height Tester Double Columns 0.01 mm

Gauge Display Optical Linear Scale Height Tester Double Columns 0.01 mm

Gauge Display Optical Linear Scale Height Tester Double Columns 0.01 mm

Ürün ayrıntıları:

Place of Origin: China
Marka adı: UNIMETRO
Model Number: UGHT-D

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1
Packaging Details: Paper box
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 30 per month
Şimdi başvurun
Detaylı ürün tanımı
Material: Stainless steel Hand wheel movement: Fast moving and fine adjusting
Resolution: 0.01mm, 0.001” Structure: Double column design
Measuring clamp material: Rigid alloy Hardening process: The integer base



Gauge Display Optical Linear Scale Height Testers Double Columns 0.01 mm



Features



Stainless steel material.



The large hand wheel behind the scale body is able to achieve fast moving and fine adjusting.



Offering accurate and direction switchable digital counting.



Resolution: 0.01mm, 0.001”



The advanced double column design ensures the measuring accuracy.



Rigid alloy measuring clamp with curved lines.



The integer base is with hardening process.



Models



Metric

Model        Measuring Range     Gauge Resolution    Digital counter resolution     Accuracy

3321-301   0-300mm                   0.01mm                   1.0mm                                 +0.03mm
3321-451   0-450mm                   0.01mm                   1.0mm                                 +0.04mm
3321-501   0-500mm                   0.01mm                   1.0mm                                 +0.05mm
3321-601   0-600mm                   0.01mm                   1.0mm                                 +0.05mm



Imperial

Model        Measuring Range     Gauge Resolution    Digital counter resolution     Accuracy

3322-301   0-12"                         0.001"                       0.1"                                     +0.02"
3322-451   0-18"                         0.001"                       0.1"                                     +0.025"
3322-501   0-20"                         0.001"                       0.1"                                     +0.03"
3322-601   0-24"                         0.001"                       0.1"                                     +0.03"
