Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging

Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging
Temel bilgi
Menşe yeri: Guangdong, Çin
Marka adı: UNIMETRO
Model numarası: Ranger 600
Min sipariş miktarı: 1
Fiyat: $15,600-22,000
En iyi fiyat Şimdi başvurun
Detay Bilgi
X Eksen seyahati: 80mm Y Ekseni seyahati: 60 mm
Z Ekseni aralığı: 60 mm Maksimum takım çapı: 50 mm
Maksimum araç uzunluğu: 300mm Çalışma mesafesi: 90mm
Objektif Büyütme: 0.7-4.5x Kamera çözünürlüğü: 2M Pixel HD (5m isteğe bağlı)
Doğrusal ölçek çözünürlüğü: 0.0001mm Büyütme aralığı: 12.6x ~ 79.2x (25.2x ~ 158.4x isteğe bağlı)
Görüş alanı: 27*20mm ~ 4.3*3.3mm (13.5*10mm ~ 2.3*1.6mm isteğe bağlı) Doğruluğu ölçme: X ~ y, (2.5+l/100) µm
bilgisayar sistemi: Hepsi bir arada PC, Windows 10 OS, 24 "LCD Aydınlatma Tipi: 8 bölüm LED halka ışığı, kontur ışığı, yardımcı ışık
Giriş/çıkış biçimleri: DXF, Excel
Vurgulamak:

Electronic Power Tool Inspection System

,

SMARTOOL Measuring Software Vision Measurement Machine

,

Wooden Case Packaging Video Measuring System

Ürün Açıklaması

Milling Tool Inspection System Tool Video Measuring System Vision Measurement Machine
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 0 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 1
Product Application

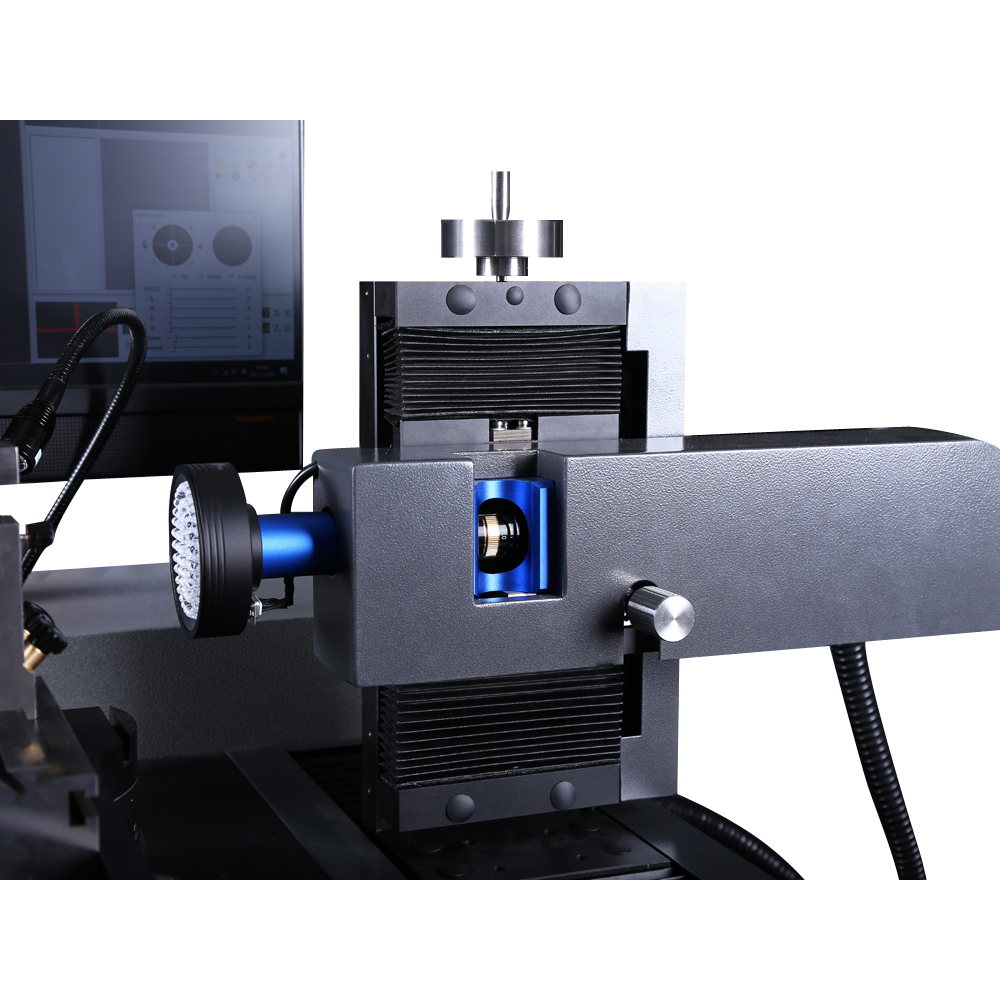

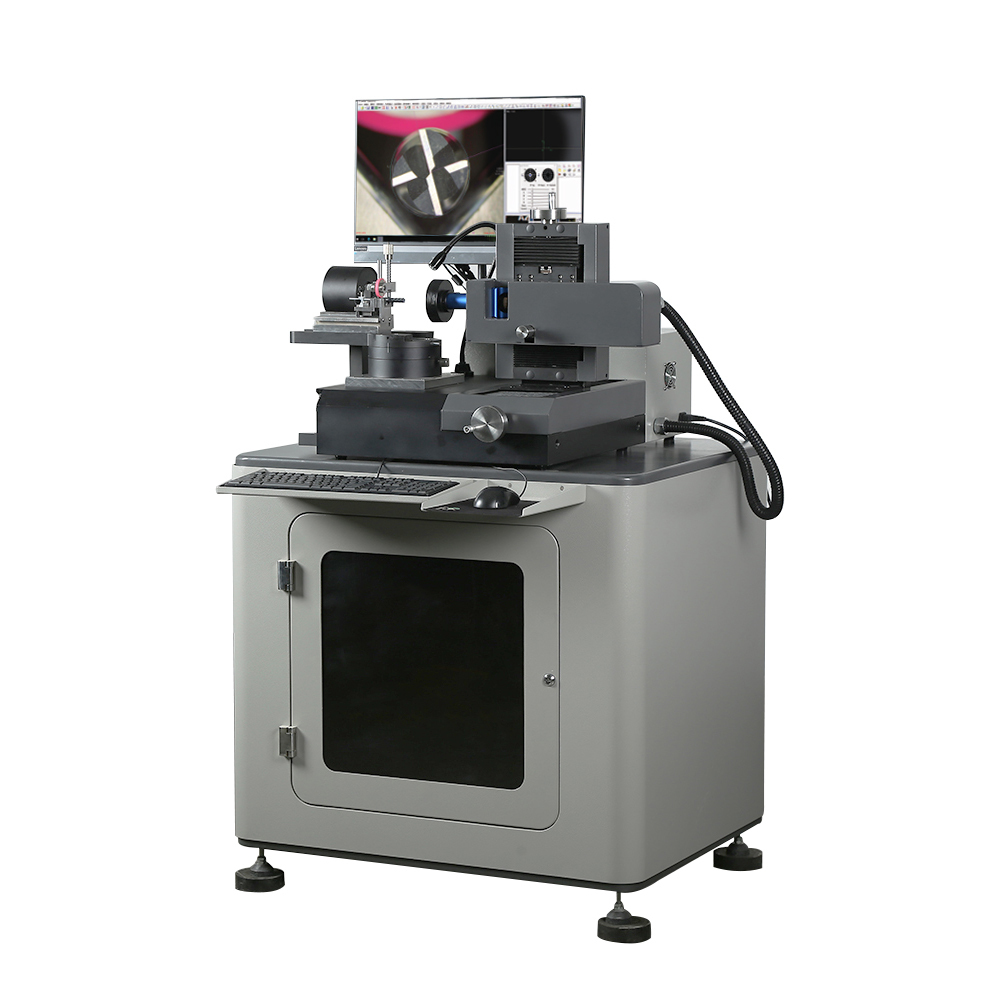

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and countersinks with a flexible illuminating system. Thanks to the compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.
The RANGER600 Tool Inspection system is configured with SMARTOOL universal measuring software, making it the ideal instrument for all types of metal cutting tools - from fast checking of single criteria (such as outer contour or angles) to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 2 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 3 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 4 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 5 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 6 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 7
Technical Parameters
X axis travel 80mm
Y axis Travel 60mm
Z axis measuring range 60mm
Max tool Diameter 50mm
Max tool length 300mm
Working distance 90mm
Lens 0.7-4.5X dented zoom lens
Camera 2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution 0.0001mm
Magnification 12.6X~79.2X/25.2X~158.4X (Optional)
Field of view 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)
Measuring accuracy X~Y,(2.5+L/100)µm, L is the measured length
PC ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination 8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable
Input format DXF files
Output format EXCEL, DXF
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 8 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 9 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 10 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 11 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 12 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 13
Advanced Design Features
  • Ergonomic design and solid construction
  • HD image capturing and display combination, with optional microscope magnification levels
  • Stable and accurate V block for easy tools holding and alignment
  • Mechanical fixed measuring angles of 0 degree and 90 degrees available on the rotary stage
  • High accuracy encoder embedded in the rotary table for precise angle location
  • Multiple section programmable LED ring light for surface illumination, including contour lighting and free angle auxiliary light
  • SMARTOOL measuring software with specific functions for cutting tools
  • Automatic edge detection, fast angle measurement with reticle, and CAD element comparison functions
  • Measuring results can be quickly output to EXCEL file reports or CAD files
  • ALL-IN-ONE PC system for enhanced stability
Multiple Angle Measurement Capabilities
The rotary table of the RANGER600 offers two mechanical fixed angles (0° and 90°) for fast and precise tool angle location during measurement. At 0°, users can measure Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position is designed for Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle measurements. For other angle requirements, the embedded encoder provides precise angle readings displayed in the software.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 14 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 15
0 Degree Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 16 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 17
45 Degrees Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 18 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 19
90 Degrees Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 20 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 21 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 22 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 23
Illumination System Features

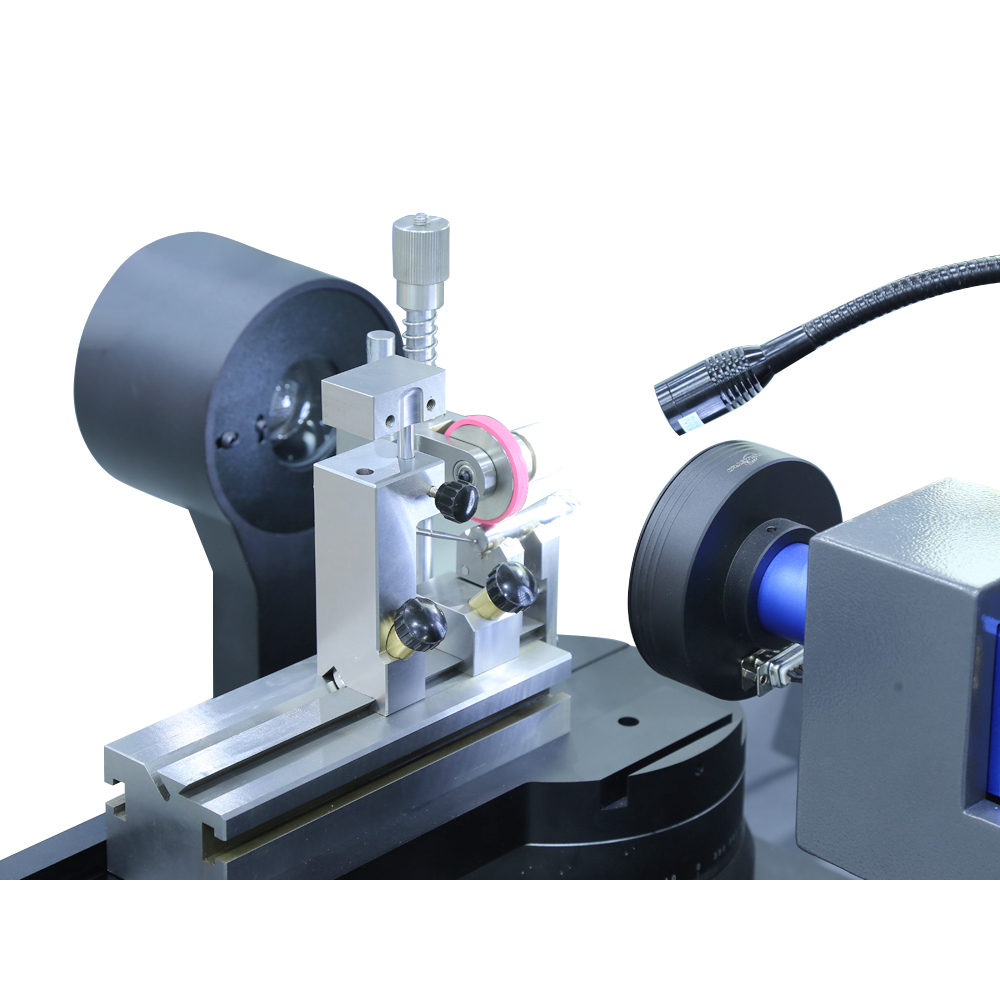

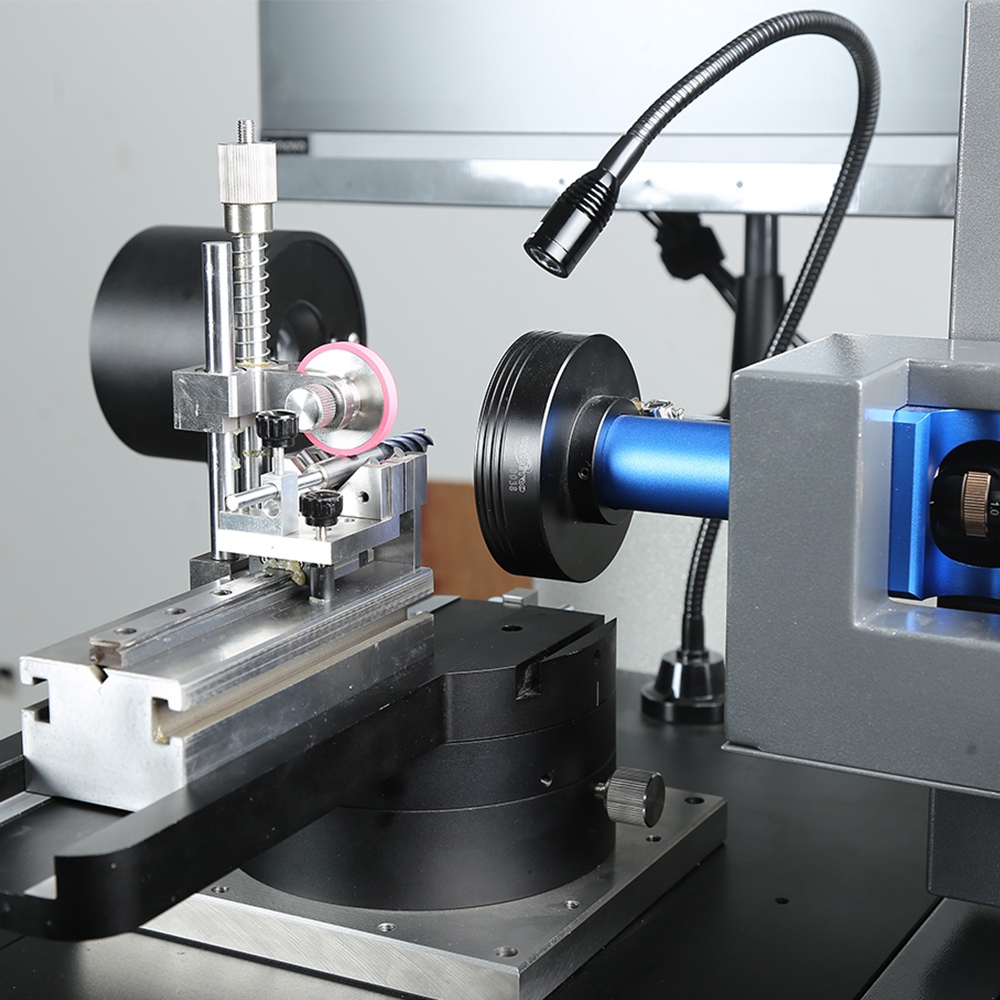

Free Angle Auxiliary Light
A dimmable additional light on a flexible arm provides localized image enhancement for detailed measurements.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 24 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 25

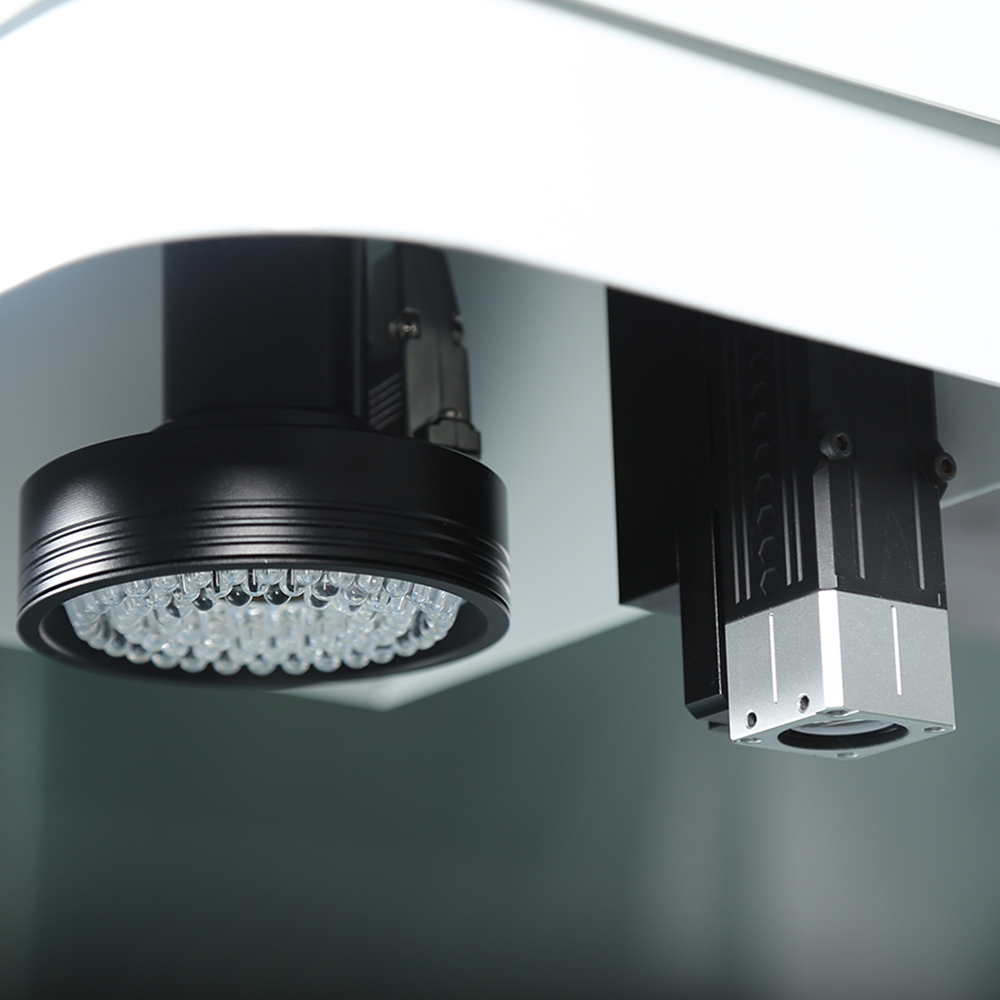

Contour Light Module
The RANGER600 includes a parallel light path contour LED module that moves along the X-axis, providing optimal imaging and sharp edge definition when measuring tool contours.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 26 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 27
Base Table
The solid standing workstation features practical, open-view storage space for materials and tools.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 28 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 29
Tools Holder
A multi-section tools holder is embedded at the machine side for organized tool preparation and storage.
SMARTOOL Software Features
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 30 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 31
The SMARTOOL Cutting Tools Measuring Software is developed based on high-accuracy optical and digital measuring technology. This intuitive software offers numerous measuring and evaluation algorithms specifically designed for tools manufactured or sharpened in grinding operations.
Key Software Features
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 32 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 33
Easy Operation
High-resolution image display with graphical interface. All function keys and control panels are displayed on the software window for intuitive operation.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 34 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 35
Dynamic Real-Time Curve View
The software provides real-time edge detection curve visualization, making edge analysis and measurement more intuitive. Users can switch to curve view mode at any time during measurement.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 36 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 37
Fast Angle Measuring with Reticle
The freely rotatable reticle in the SMARTOOL software displays angles, enabling quick angle measurements through edge comparison.
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 38 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 39
CAD Comparison
Users can import CAD tool drawings as references, comparing real images to CAD designs to evaluate cutting tool geometries.
Measuring Capabilities
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 40 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 41
Helix Angle Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 42 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 43
Axial Front Angle Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 44 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 45
First Rear Angle Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 46 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 47
Second Rear Angle Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 48 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 49
Tilting Edge Angle Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 50 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 51
Tool End Measurement
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 52 Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging 53
Tool End - Center Shaft Measurement
