Modeli:	HE Serisi	Ürün Adı:	Tam otomatik görüntü ölçüm cihazı (sabit portal tipi) - HP442
Tekrarlanabilirlik:	1.5um	Kesinlik:	1,6+L/200um
Doğrusal ölçek çözünürlüğü:	0.5um (0.1um isteğe bağlı)	Ölçüm modu:	Tam otomatik
Destek:	OEM, ODM, Özelleştirme	Uygulama Ortamı:	Laboratuvar/Endüstriyel
Garanti:	12 ay	Ağırlık(kg):	560
Tekrarlanabilirlik doğruluğu (um):	1.5
Vurgulamak:	HP Series CNC vision measuring machine , semiconductor component inspection machine , micron-level precision vision measurement

Ürün Açıklaması

HP Series CNC Vision Measuring Machine – Micron-level Precision Inspection for Semiconductor Components

Product Overview

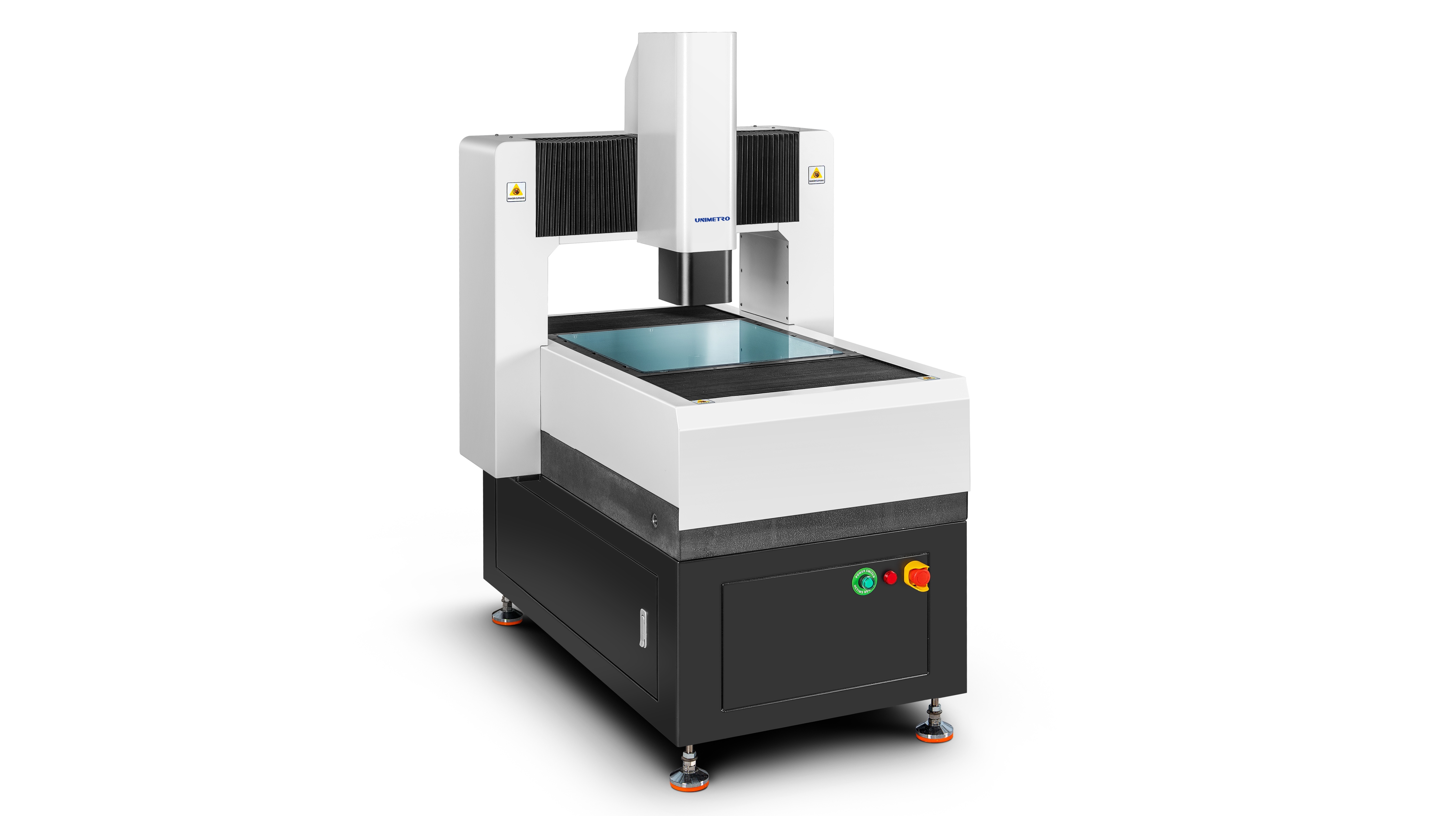

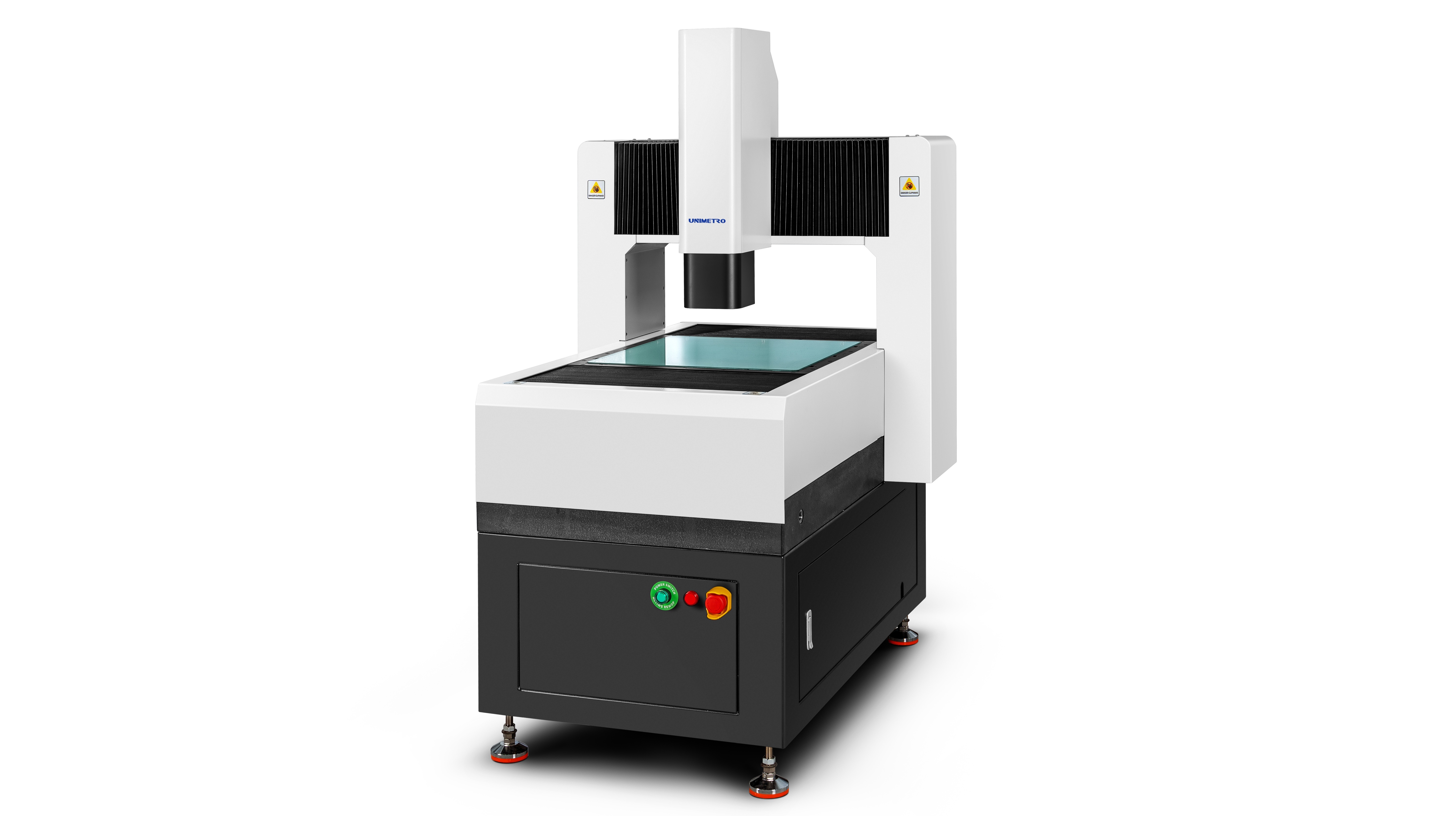

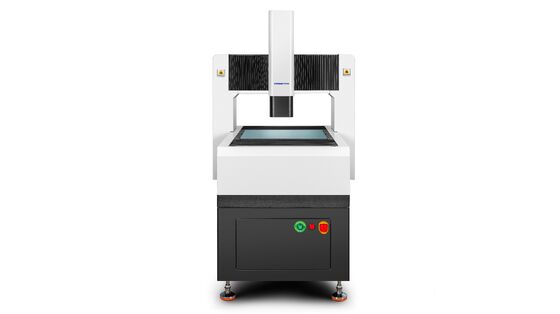

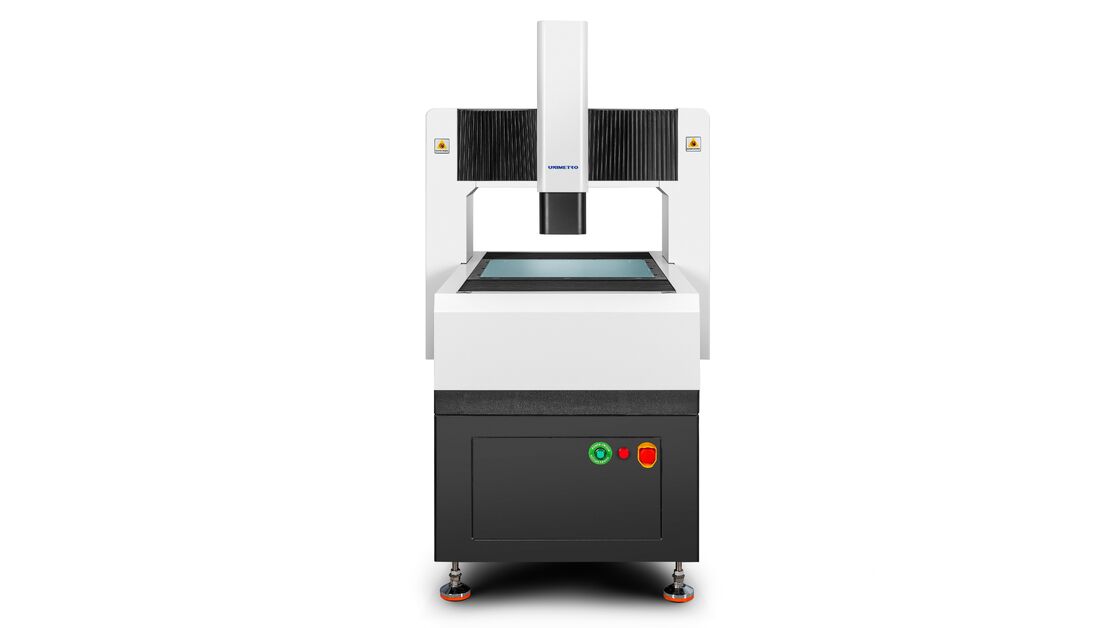

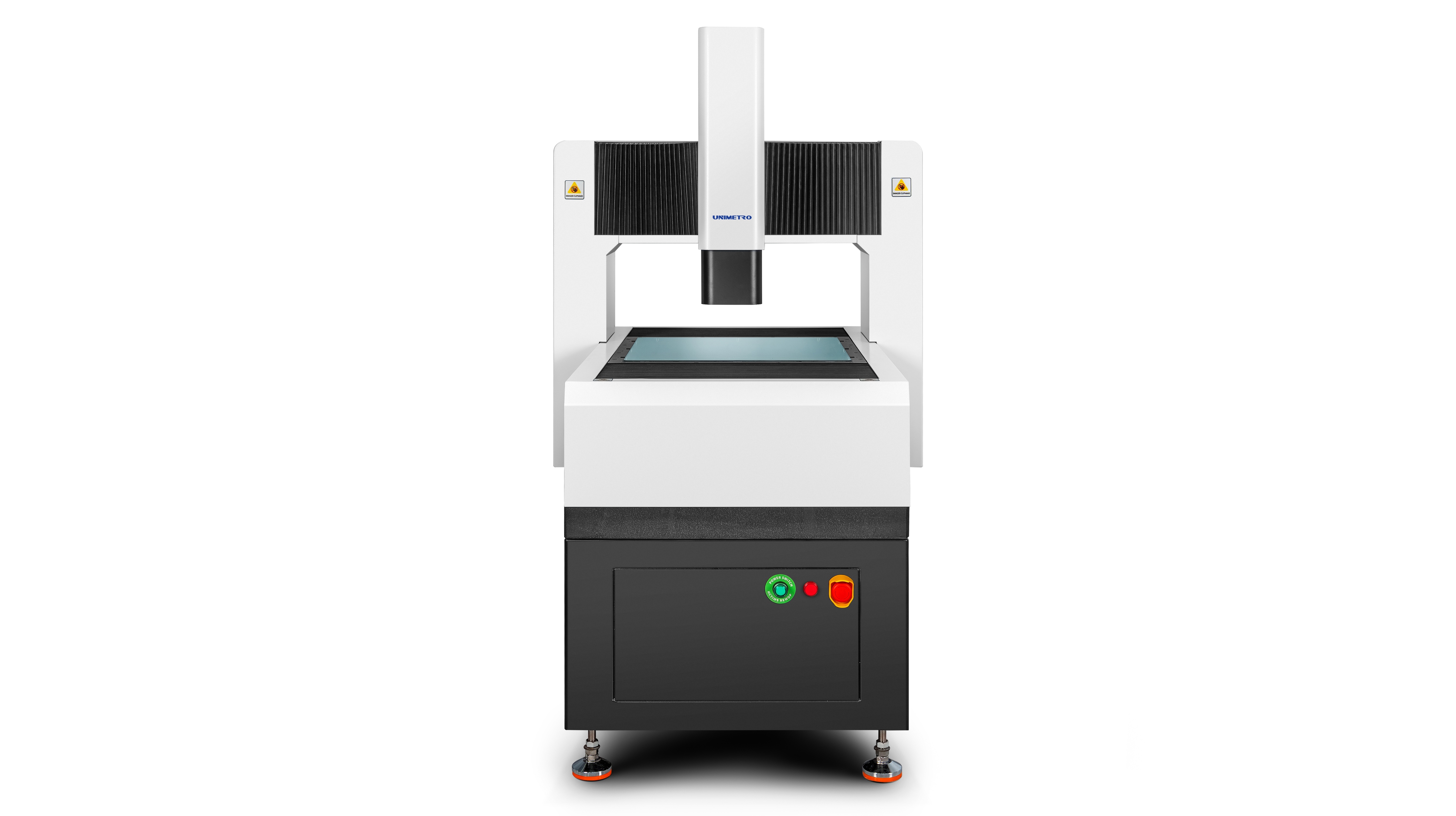

HP442 - Fully Automatic Image Measuring Instrument (Fixed Gantry Type)

HP: High-Precision (High Precision). The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.

Technical Specifications

Model	HP 442	HP662	HP872
Dimensions (mm) (X × Y × Z)	920×1200×1600	1120×1400×1600	1320×1600×1600
Measuring range (mm) (X × Y × Z)	400×400×200	600×600×200	800×700×200
Accuracy (μm)	1.6 +L/200	1.6 +L/200	1.6 +L/200
Repeatability (μm)	1.5	1.5	1.5
Weight (kg)	560	860	1600

Additional Specifications

Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (varies by camera model)
Video Magnification: 18~195X (varies by camera model)
Work Distance: 85mm
Illumination: Programmable surface light, LED bottom parallel light (optional: coaxial light)
Drive System: CNC control, linear motor drive; Joystick, mouse keyboard control
Linear Scale Resolution: 0.1μm

Applications

Key Features

High Rigid Structure Design

Whole closed frame moving bridge structure with fixed measuring workpiece, providing large bearing capacity and excellent motion performance
Finite element analysis technology integrated into mechanical design for high rigidity and precision structure
Grade 000 granite base with high strength, corrosion resistance and excellent stability
Aluminum oxide surface treatment worktable for fast, flexible action control, durability and aesthetics

High Precision Configuration

RENISHAW open grating ruler with 0.5μm resolution for high precision and stability

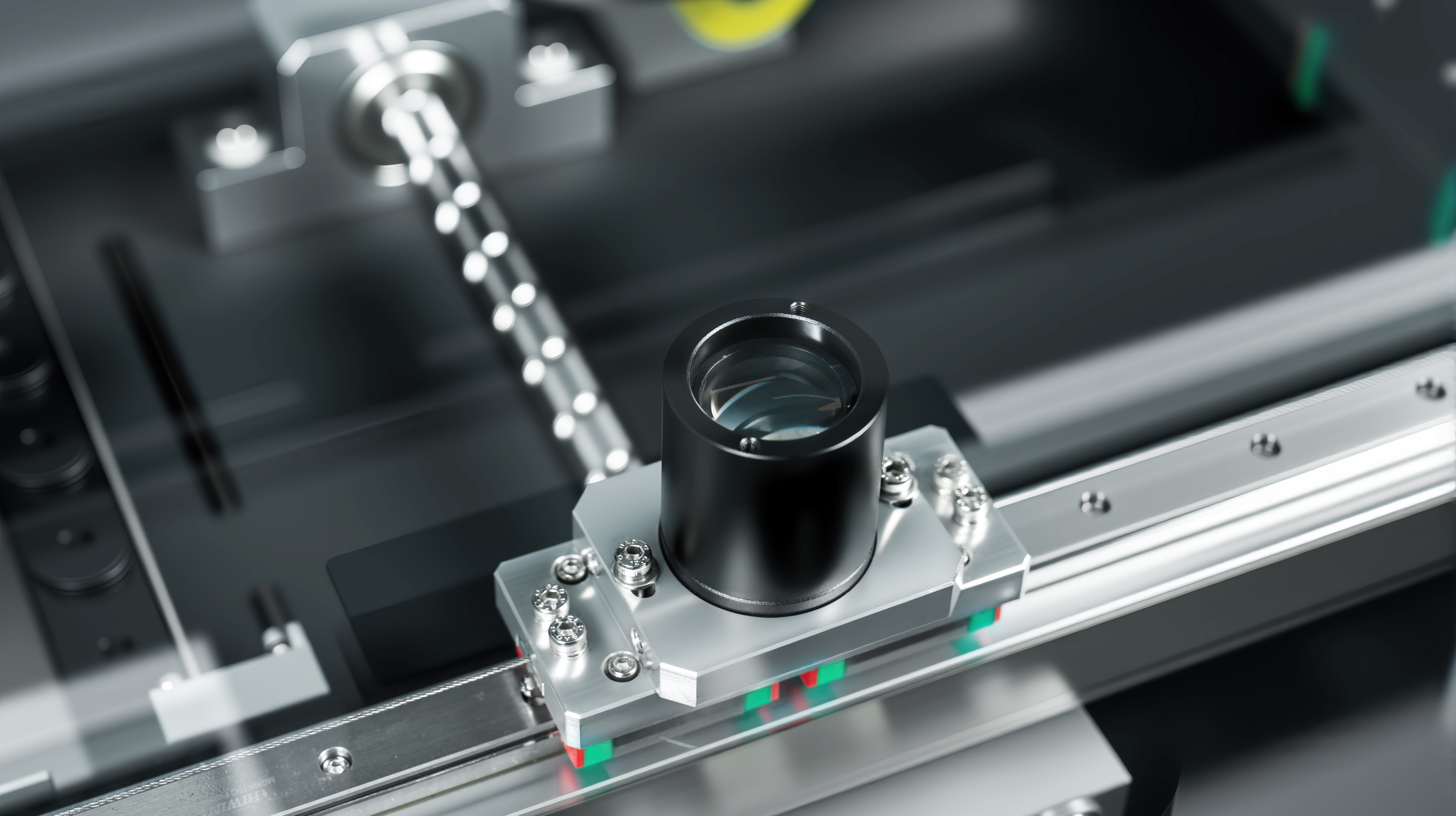

Precision linear guide rail, ball screw of grinder and AC servo motor ensure positioning accuracy stability
2M pixel high-definition color Giga digital camera for clear observation and stable measurement
6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration

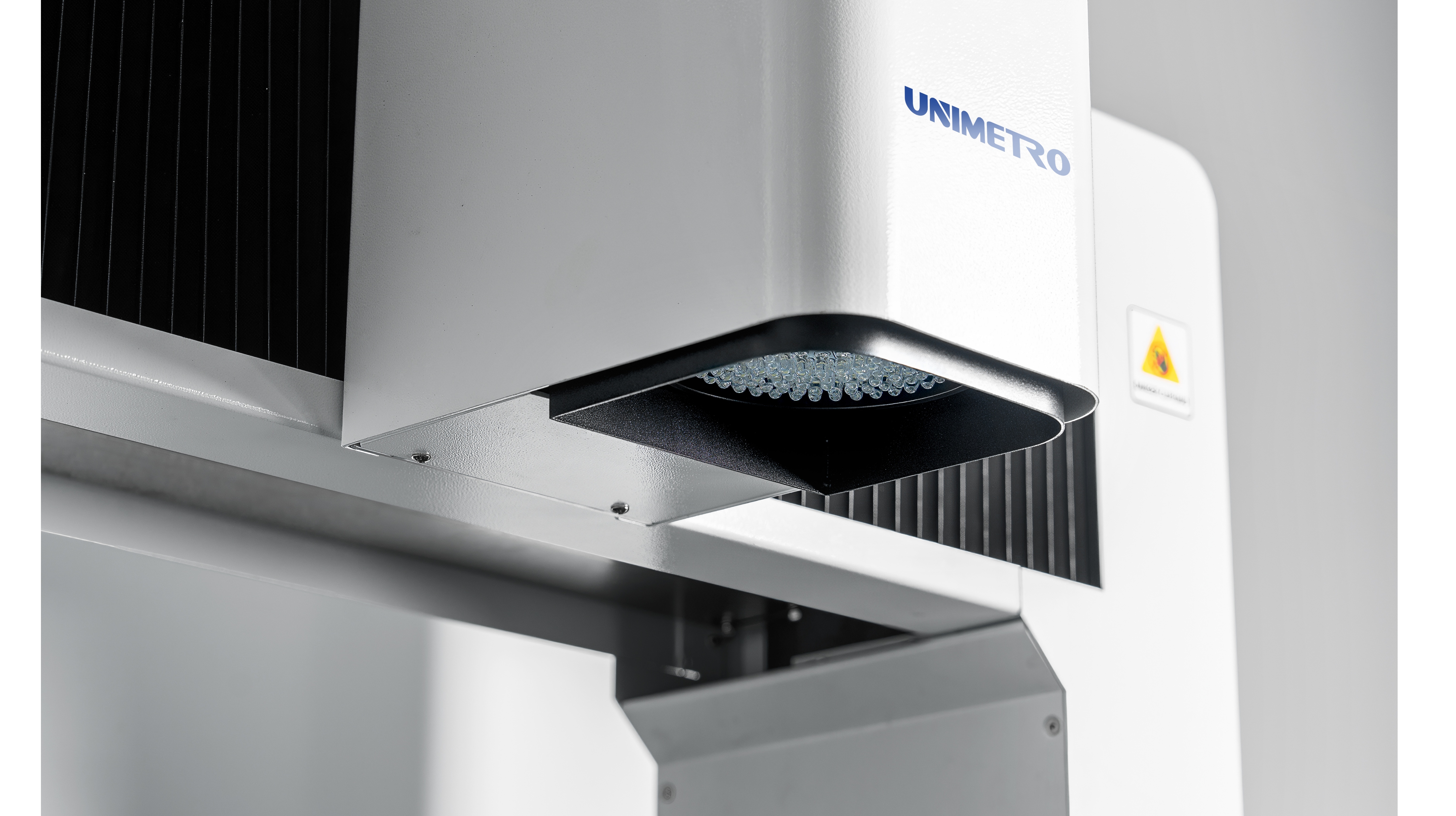

Programmable 5-ring 8-zone LED surface light source with transmission parallel LED contour light source system and intelligent 256 level brightness adjustment
Full axis CNC control with AC full closed loop servo motor drive

Optional Multi-Sensor for 3D Measurement

HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D/3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. Supports RENSHAW full series of probe bracket, enabling users to complete automatic transformation of full-scale measurement on one device, greatly improving productivity.
